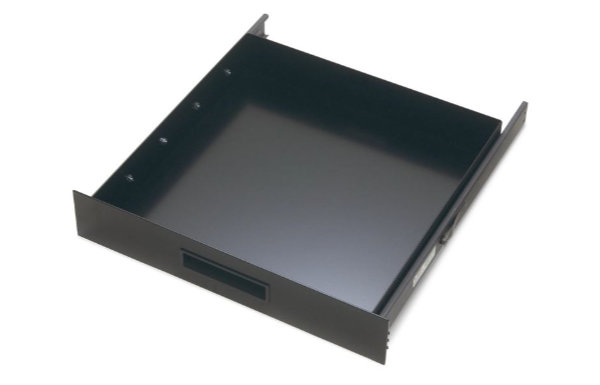

D-4100 Storage Drawer
Your request has been sent! A representative will contact you as soon as possible.
Product Information
Product Notes
- Storage drawer body (16 gauge C.R.S. with powder coat black finish).
- Interior drawer dimensions are 0.25” less than stated drawer body width and depth
- Slides lock out and sections separate for easy installation.
- 19" rack model requires a cabinet clear opening of ≥17.75” for rear mount or ≥17.88” for front mount. 24" and 30" rack model have similar restraints.
- Standard mounting depth from 20" to 26". If mounting in a shallower or deeper cabinet, customization is available.
- Front panel (12 gauge C.R.S. with semi-gloss black finish).
- Handle pull
- Includes: C-300-S-120 slides and B-308 extension bracket
Product Models
Showing Results: 1 - 21 of 21
| Item # | Rack Units (U) | Front Panel Width (in) | Drawer Body Width (in) | D (in) | GDI Reference # |
|---|---|---|---|---|---|
| D-4100-3 | 2 | 19 | 17 | 3.47 | VD4100-00-0003 |
| D-4100-5 | 3 | 19 | 17 | 5.22 | VD4100-00-0005 |
| D-4100-7 | 4 | 19 | 17 | 6.97 | VD4100-00-0007 |
| D-4100-8 | 5 | 19 | 17 | 8.72 | VD4100-00-0008 |
| D-4100-10 | 6 | 19 | 17 | 10.47 | VD4100-00-0010 |
| D-4100-12 | 7 | 19 | 17 | 12.22 | VD4100-00-0012 |
| D-4100-14 | 8 | 19 | 17 | 13.97 | VD4100-00-0014 |
| D-4100-3-24PW | 2 | 24 | 22 | 3.47 | VD4100-20-0003 |
| D-4100-5-24PW | 3 | 24 | 22 | 5.22 | VD4100-20-0005 |
| D-4100-7-24PW | 4 | 24 | 22 | 6.97 | VD4100-20-0007 |
| D-4100-8-24PW | 5 | 24 | 22 | 8.72 | VD4100-20-0008 |
| D-4100-10-24PW | 6 | 24 | 22 | 10.47 | VD4100-20-0010 |
| D-4100-12-24PW | 7 | 24 | 22 | 12.22 | VD4100-20-0012 |
| D-4100-14-24PW | 8 | 24 | 22 | 13.97 | VD4100-20-0014 |
| D-4100-3-30PW | 2 | 30 | 28 | 3.47 | VD4100-30-0003 |
| D-4100-5-30PW | 3 | 30 | 28 | 5.22 | VD4100-30-0005 |
| D-4100-7-30PW | 4 | 30 | 28 | 6.97 | VD4100-30-0007 |
| D-4100-8-30PW | 5 | 30 | 28 | 8.72 | VD4100-30-0008 |
| D-4100-10-30PW | 6 | 30 | 28 | 10.47 | VD4100-30-0010 |
| D-4100-12-30PW | 7 | 30 | 28 | 12.22 | VD4100-30-0012 |
| D-4100-14-30PW | 8 | 30 | 28 | 13.97 | VD4100-30-0014 |
