Solid Bearing Slides

solidbearingslides-01

Solid Bearing slides (or friction slides) are ideal for use in rugged applications where ball bearing slides simply might not make sense. Because no ball bearings are needed for these slide to function, they are idea for applications where you might need specific features such as :

Interchangeable inner sections for quick change out of components
High dust or grit environments that might cause a bearing slide with grease to bind
High temp environments
High shock and vibration and mobile environments

Solid Bearing friction slide are best for applications that medium cycling do the a typical 20% of load push-pull force. . We do require our solid bearing slides to pass load bearing cycle tests of at least 2500 cycles

Special features that are available:

Lock out and non-lock (automatic release)
Quick disconnect for complete removal of equipment from the cabinet
Various mounting types ( strap mount and rack mount)
Roller Bearing models available for heavier loads
pivoting versions that allow the load to pivot up and down once slide is extended

Products

Please select a product to view more information.

C-300-S Non Pivoting Slide

C-300-S Non Pivoting Slide

Load Capacity: 80-95 lbs

C-300 Rev C Non Pivoting Slide

C-300 Rev C Non Pivoting Slide

Load Capacity: 80-95 lbs

C-3700 Ultra-Thin Solid Bearing Slide

C-3700 Ultra-Thin Solid Bearing Slide

Load Capacity: 60-85 lbs

C-230-S Non Pivoting Slide

C-230-S Non Pivoting Slide

Load Capacity: 125-140 lbs

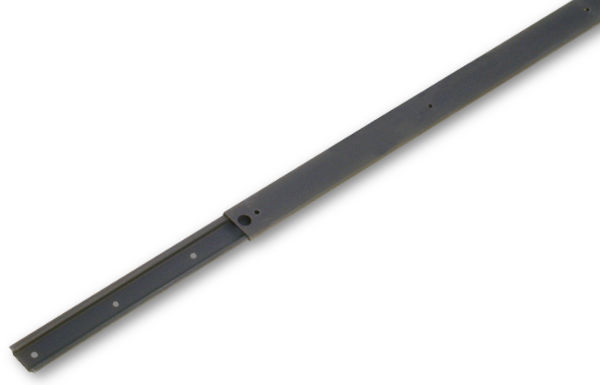

C-649 Two-Section Spacesaving Slide

C-649 Two-Section Spacesaving Slide

Load Capacity: 80-95 lbs

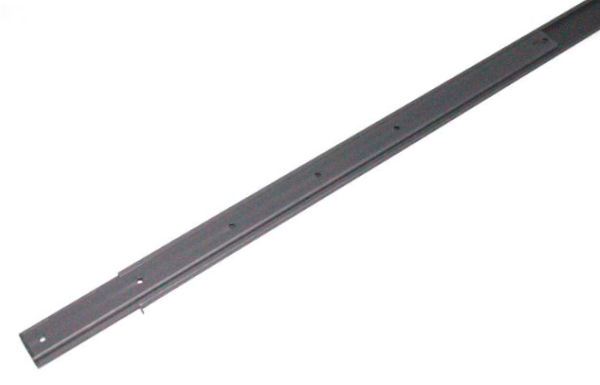

C-874 Two-Section Spacesaving Slide

C-874 Two-Section Spacesaving Slide

Load Capacity: 80-95 lbs

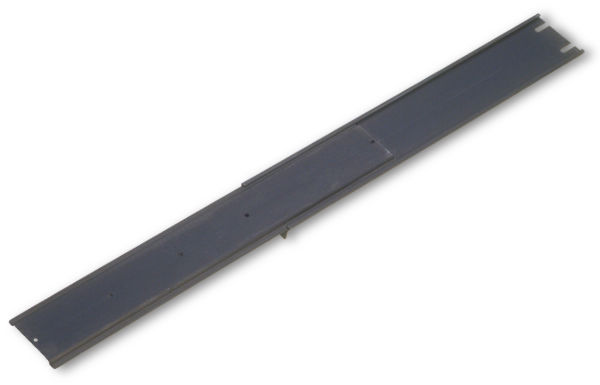

C-857 Two-Section Spacesaving Slide

C-857 Two-Section Spacesaving Slide

Load Capacity: 125-140 lbs

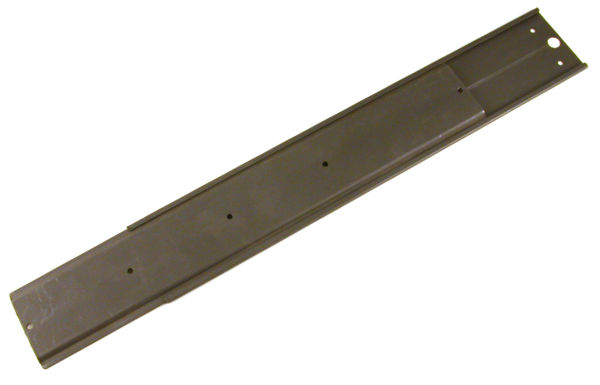

C-917 Two Section Slide

C-917 Two Section Slide

Load Capacity: 125-140 lbs

CTS Non Pivoting Slide

CTS Non Pivoting Slide

Load Capacity: 175 lbs

CTRS Non Pivoting Slide

CTRS Non Pivoting Slide

Load Capacity: 175 lbs

CTHRS Non Pivoting Slide

CTHRS Non Pivoting Slide

Load Capacity: 275 lbs

CTHS Non Pivoting Slide

CTHS Non Pivoting Slide

Load Capacity: 275 lbs

C-300-D Pivot Up and Down Slide (3 Position Lock)

C-300-D Pivot Up and Down Slide (3 Position Lock)

Load Capacity: 80-95 lbs

C-230-D Pivot Up and Down (5 Position Lock)

C-230-D Pivot Up and Down (5 Position Lock)

Load Capacity: 125-140 lbs

CTD Pivot Up and Down Slide (7-Position Lock)

CTD Pivot Up and Down Slide (7-Position Lock)

Load Capacity: 175 lbs

CTRD Pivot Up and Down (7 Position Lock)

CTRD Pivot Up and Down (7 Position Lock)

Load Capacity: 175 lbs

CTHD Pivot Up and Down (7 Position Lock)

CTHD Pivot Up and Down (7 Position Lock)

Load Capacity: 275 lbs

CTHRD Pivot Up and Down (7 Position Lock)

CTHRD Pivot Up and Down (7 Position Lock)

Load Capacity: 275 lbs

C-230 Optional Mounting Brackets

C-230 Optional Mounting Brackets

C-300 Optional Mounting Brackets

C-300 Optional Mounting Brackets

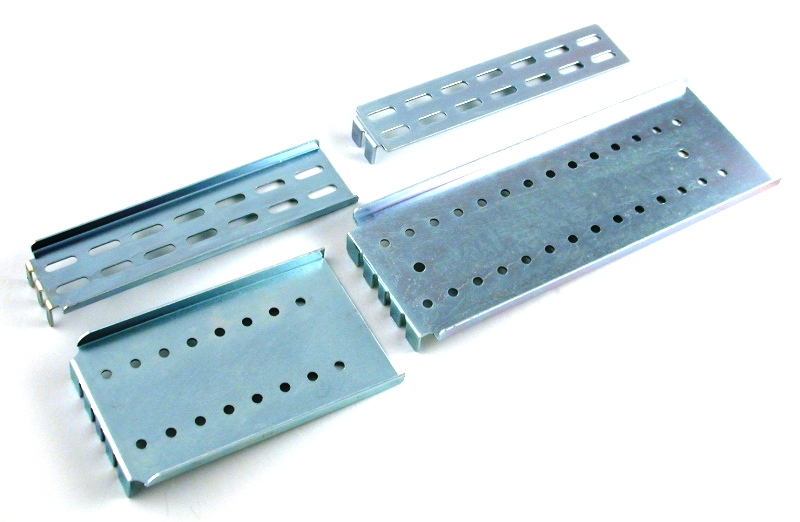

CT/CTR Optional Mounting Brackets

CT/CTR Optional Mounting Brackets

CTH/CTHR Optional Mounting Brackets

CTH/CTHR Optional Mounting Brackets

Two-Section Slides Mounting Brackets

Two-Section Slides Mounting Brackets
