C-874 Two-Section Spacesaving Slide
Your request has been sent! A representative will contact you as soon as possible.
Product Information
Product Image
Model
C-874
- B-217
- B-217-1.5
- B-217-2
- B-217-2.5
- B-217-3
- B-217-3.5
- B-217-4
- B-161
- B-161-1.5
- B-161-2
- B-161-2.5
- B-161-3
- B-161-3.5
- B-161-4
Load Capacity Range
80-95 lbs
Load Capacity Notes
Load capacity is based on one set of slides at full extension with load (center of gravity) centered between the slides and at midpoint of the slide (chassis section). Load capacities have a 100% (static load) safety factor at full extension. The slides will support more than the stated capacities but are not designed to be operated at capacities greater than those stated.
Spec Sheets
Product Notes
- Right hand and left hand slide are same.
- Finish: All Standard Slides are coated with Poxylube® dry film lubricant.
- All standard slides are designed to lock in the extended position.
- Automatic release is available if lock-out is not desirable.
- Standard hardware packages include all hardware necessary to mount your Chassis Trak® slides:

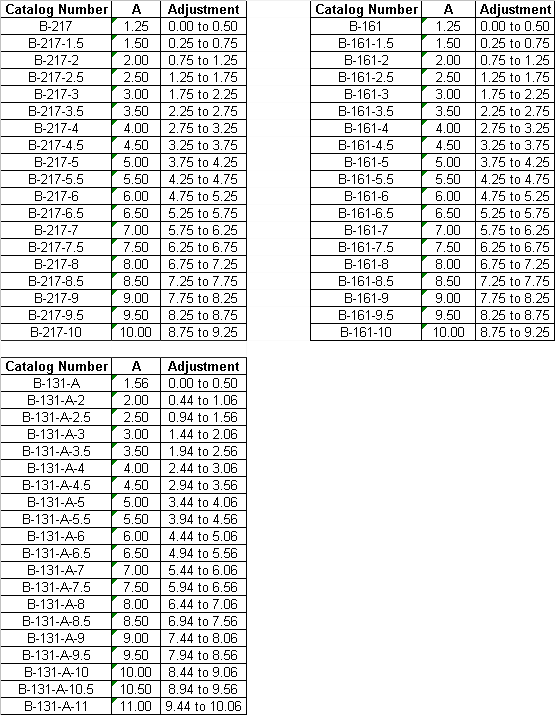

C-874- Rear mounting brackets (B-217)
- Bar nuts (CA8056-06-0017)
- #10-32 x 0.38 B.H.M.S.
- #10-32 KEPS nuts
C-874-RC- Rear mounting bracket (B-161)
- Bar nuts (CA8056-06-0014)
- #10-32 x 0.38 B.H.M.S.
- #10-32 KEPS® nuts
- All sliding members of the standard slide are made from cold rolled steel. This model is also available in stainless steel.
- All Chassis Trak® solid bearing slides are supplied with a quick disconnect feature. This permits the entire chassis to be removed easily and replaced.
- Optional mounting patterns, slide lengths and extensions are available.
Product Models
Showing Results: 1 - 22 of 22
| Item # | Slide Length - A (in) | Load Capacity (lbs) | GDI Reference # |
|---|---|---|---|
| C-874-10 | 10 | 95 | CC3201-00-0100 |
| C-874-10-RC | 10 | 95 | CC3241-00-0100 |
| C-874-12 | 12 | 95 | CC3201-00-0120 |
| C-874-12-RC | 12 | 95 | CC3241-00-0120 |
| C-874-14 | 14 | 90 | CC3201-00-0140 |
| C-874-14-RC | 14 | 90 | CC3241-00-0140 |
| C-874-16 | 16 | 90 | CC3201-00-0160 |
| C-874-16-RC | 16 | 90 | CC3241-00-0160 |
| C-874-18 | 18 | 90 | CC3201-00-0180 |
| C-874-18-RC | 18 | 90 | CC3241-00-0180 |
| C-874-20 | 20 | 85 | CC3201-00-0200 |
| C-874-20-RC | 20 | 85 | CC3241-00-0200 |
| C-874-22 | 22 | 85 | CC3201-00-0220 |
| C-874-22-RC | 22 | 85 | CC3241-00-0220 |
| C-874-24 | 24 | 85 | CC3201-00-0240 |
| C-874-24-RC | 24 | 85 | CC3241-00-0240 |
| C-874-26 | 26 | 80 | CC3201-00-0260 |
| C-874-26-RC | 26 | 80 | CC3241-00-0260 |
| C-874-28 | 28 | 80 | CC3201-00-0280 |
| C-874-28-RC | 28 | 80 | CC3241-00-0280 |
| C-874-30 | 30 | 80 | CC3201-00-0300 |
| C-874-30-RC | 30 | 80 | CC3241-00-0300 |
