CTHRS Non Pivoting Slide

Your request has been sent! A representative will contact you as soon as possible.

Product Information

Product Image

Example of CTHRS Non Pivoting Slide

Model

CTHRS

Options

  • Automatic Release

Stationary Section

Cabinet Mount

Optional Mounting Bracket

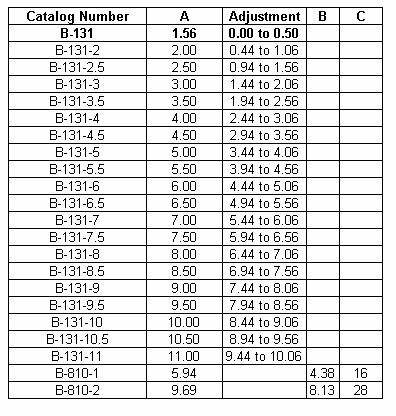

  • B-131
  • B-131-2
  • B-131-2.5
  • B-131-3
  • B-131-3.5
  • B-131-4
  • B-810-1
  • B-810-2

Load Capacity Range

275 lbs

Load Capacity Notes

Load capacity is based on one set of slides at full extension with load (center of gravity) centered between the slides and at midpoint of the slide (chassis section). Load capacities have a 100% (static load) safety factor at full extension. The slides will support more than the stated capacities but are not designed to be operated at capacities greater than those stated.

Spec Sheets

Click to View

Installation Instructions

Click to View

Product Notes

  • Right hand slide shown, left hand opposite.
  • Finish: All standard slides are coated with Poxylube® dry film lubricant.
  • All standard slides are designed to lock in the extended position.
  • Automatic release is available if lock-out is not desirable.
  • Standard hardware packages include all hardware necessary to mount Chassis Trak® slides:
    • Rear mounting brackets (B-131)
    • Bar nuts (CA8056-06-0020)
    • #10-32 x 0.50 F.H.M.S. (flush front rail mounting)
    • #10-32 x 0.63 B.H.M.S.
    • #10-32 KEPS® nuts
  • All sliding members of this slide are made from cold rolled steel.
  • All Chassis Trak® solid bearing slides are supplied with a quick disconnect feature. This permits the entire chassis to be easily removed and replaced.
  • Pickup tab available for units without front panel.
  • Optional mounting patterns, slide lengths and extensions are available.

Product Models

Showing Results: 1 - 18 of 18
Item # Slide Length - A (in) Forward Extension Min - B (in) Forward Extension Max - B (in) Load Capacity (lbs) GDI Reference #
CTHRS-118 18 21.63 23.63 275 CC1901-00-0180
CTHRS-120 20 23.63 27.63 275 CC1901-00-0200
CTHRS-122 22 23.63 29.63 275 CC1901-00-0220
CTHRS-124 24 24.25 31.63 275 CC1901-00-0240
CTHRS-214 14 13.75 15.63 275 CC1902-00-0140
CTHRS-216 16 15.75 19.63 275 CC1902-00-0160
CTHRS-218 18 21.63 23.63 275 CC1902-00-0180
CTHRS-220 20 23.63 27.63 275 CC1902-00-0200
CTHRS-222 22 23.63 29.63 275 CC1902-00-0220
CTHRS-224 24 24.25 31.63 275 CC1902-00-0240
CTHRS-414 14 13.75 15.63 275 CC1904-00-0140
CTHRS-416 16 15.75 19.63 275 CC1904-00-0160
CTHRS-418 18 21.63 23.63 275 CC1904-00-0180
CTHRS-420 20 23.63 27.63 275 CC1904-00-0200
CTHRS-422 22 23.63 29.63 275 CC1904-00-0220
CTHRS-424 24 24.25 31.63 275 CC1904-00-0240
CTHRS-114 14 13.75 15.63 275 CC1901-00-0140
CTHRS-116 16 15.75 19.63 275 CC1901-00-0160
