CTHS Non Pivoting Slide
Your request has been sent! A representative will contact you as soon as possible.
Product Information
Product Image
Model
CTHS
Options
Load Capacity Range
275 lbs
Load Capacity Notes
Load capacity is based on one set of slides at full extension with load (center of gravity) centered between the slides and at midpoint of the slide (chassis section). Load capacities have a 100% (static load) safety factor at full extension. The slides will support more than the stated capacities but are not designed to be operated at capacities greater than those stated.
Spec Sheets
Installation Instructions
Product Notes
- Right hand slide shown, left hand opposite.
- Finish: All standard slides are coated with Poxylube® dry film lubricant.
- All standard slides are designed to lock in the extended position.
- Automatic release is available if lock-out is not desirable.
- Standard hardware packages include all hardware necessary to mount Chassis Trak® slides:

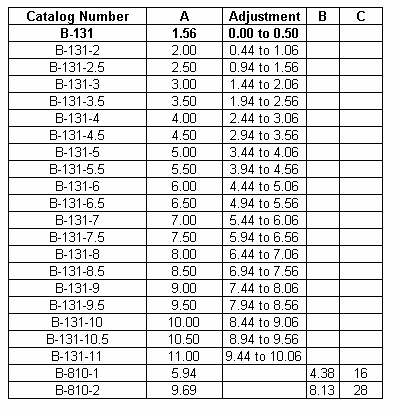

- Rear mounting brackets (B-131)
- Bar nuts (CA8056-06-0020)
- #10-32 x 0.50 F.H.M.S. (flush front rail mounting)
- #10-32 x 0.63 B.H.M.S.
- #10-32 KEPS® nuts
- All sliding members of this slide are made from cold rolled steel.
- All Chassis Trak® solid bearing slides are supplied with a quick disconnect feature. This permits the entire chassis to be easily removed and replaced.
- Pickup tab available for units without front panel.
- Optional mounting patterns, slide lengths and extensions are available.
Product Models
Showing Results: 1 - 18 of 18
| Item # | Slide Length - A (in) | Forward Extension Min - B (in) | Forward Extension Max - B (in) | Load Capacity (lbs) | Mounting Style | GDI Reference # |
|---|---|---|---|---|---|---|
| CTHS-114 | 14 | 13.75 | 15.63 | 275 | Cabinet Mount | CC1701-00-0140 |
| CTHS-116 | 16 | 15.75 | 19.63 | 275 | Cabinet Mount | CC1701-00-0160 |
| CTHS-118 | 18 | 21.63 | 23.63 | 275 | Cabinet Mount | CC1701-00-0180 |
| CTHS-120 | 20 | 23.63 | 27.63 | 275 | Cabinet Mount | CC1701-00-0200 |
| CTHS-122 | 22 | 23.63 | 29.63 | 275 | Cabinet Mount | CC1701-00-0220 |
| CTHS-124 | 24 | 24.25 | 31.63 | 275 | Cabinet Mount | CC1701-00-0240 |
| CTHS-214 | 14 | 13.75 | 15.63 | 275 | Strap Mount | CC1702-00-0140 |
| CTHS-216 | 16 | 15.75 | 19.63 | 275 | Strap Mount | CC1702-00-0160 |
| CTHS-218 | 18 | 21.63 | 23.63 | 275 | Strap Mount | CC1702-00-0180 |
| CTHS-220 | 20 | 23.63 | 27.63 | 275 | Strap Mount | CC1702-00-0200 |
| CTHS-222 | 22 | 23.63 | 29.63 | 275 | Strap Mount | CC1702-00-0220 |
| CTHS-224 | 24 | 24.25 | 31.63 | 275 | Strap Mount | CC1702-00-0240 |
| CTHS-414 | 14 | 13.75 | 15.63 | 275 | Closed Slot | CC1014-00-0140 |
| CTHS-416 | 16 | 15.75 | 19.63 | 275 | Closed Slot | CC1704-00-0160 |
| CTHS-418 | 18 | 21.63 | 23.63 | 275 | Closed Slot | CC1704-00-0180 |
| CTHS-420 | 20 | 23.63 | 27.63 | 275 | Closed Slot | CC1704-00-0200 |
| CTHS-422 | 22 | 23.63 | 29.63 | 275 | Closed Slot | CC1704-00-0220 |
| CTHS-424 | 24 | 24.25 | 31.63 | 275 | Closed Slot | CC1704-00-0240 |
