C-938 Roller Bearing Bottom Mount Slide

Your request has been sent! A representative will contact you as soon as possible.

Product Information

Product Image

Example of C-938 Roller Bearing Bottom Mount Slide

Model

C-938

Options

  • Lock-in/Lock-out available
  • Stainless hardware and stainless or Delrin rollers available for increased corrosion resistance.

Temperature

-45 to 350 ºF

Cold Rolled Steel

12 (0.105) gauge

Load Capacity Range

85-400 lbs

Load Capacity Notes

Load capacity is based on one slide at full extension with the load (center of gravity) at the midpoint of the slide (chassis section). For increased load capacity, multiply the number of slides required for the application. Stated load capacity has a 100% static (non-moving) load safety factor at full extension. Slide is not intended to be operated with continuous loading which exceeds stated capacities.

Spec Sheets

Click to View

Installation Instructions

Click to View

Image Gallery

Product Notes

  • Standard C-938 is a non-locking slide.
  • Optional lock-in/lock-out feature is available.

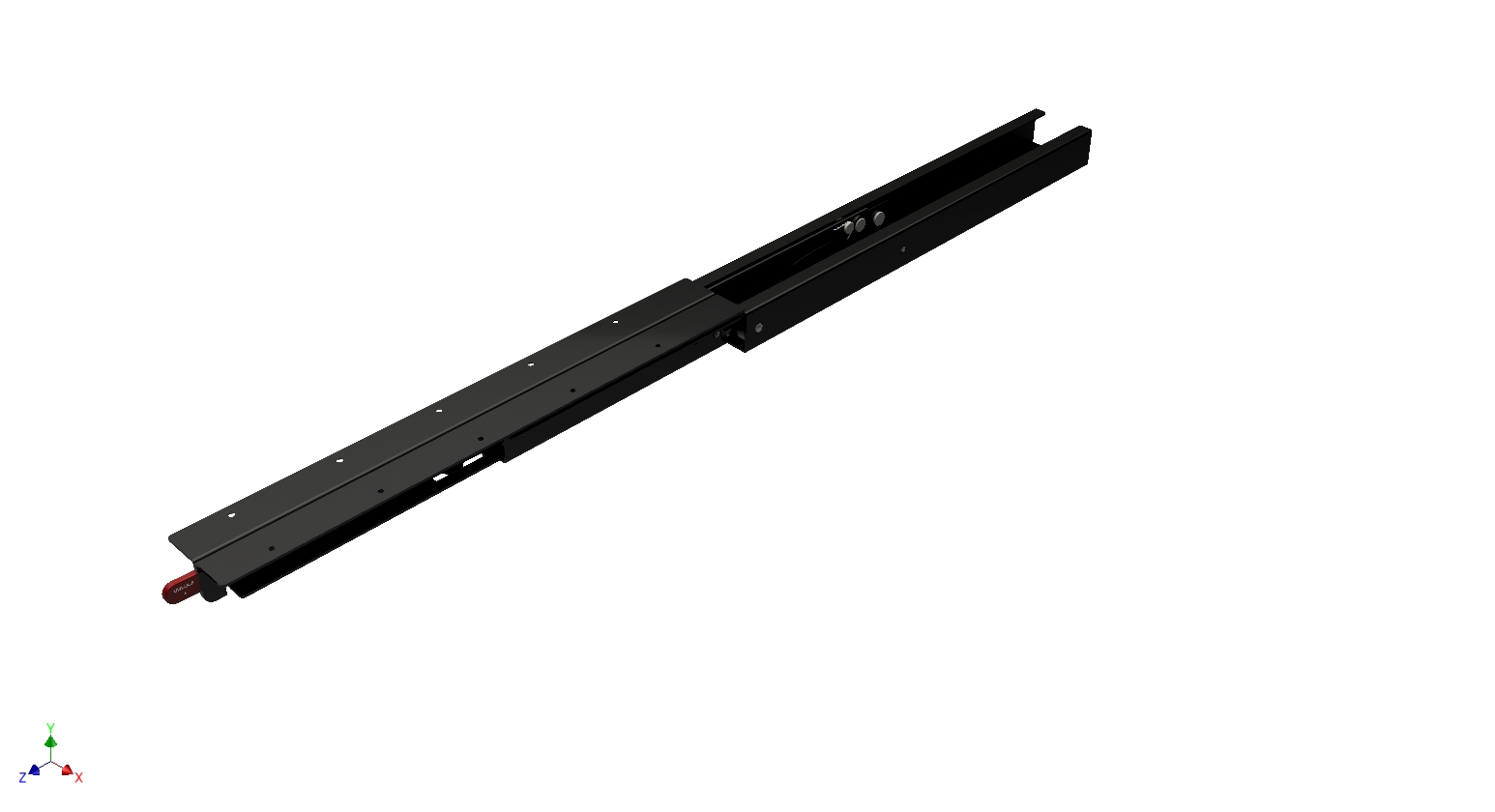

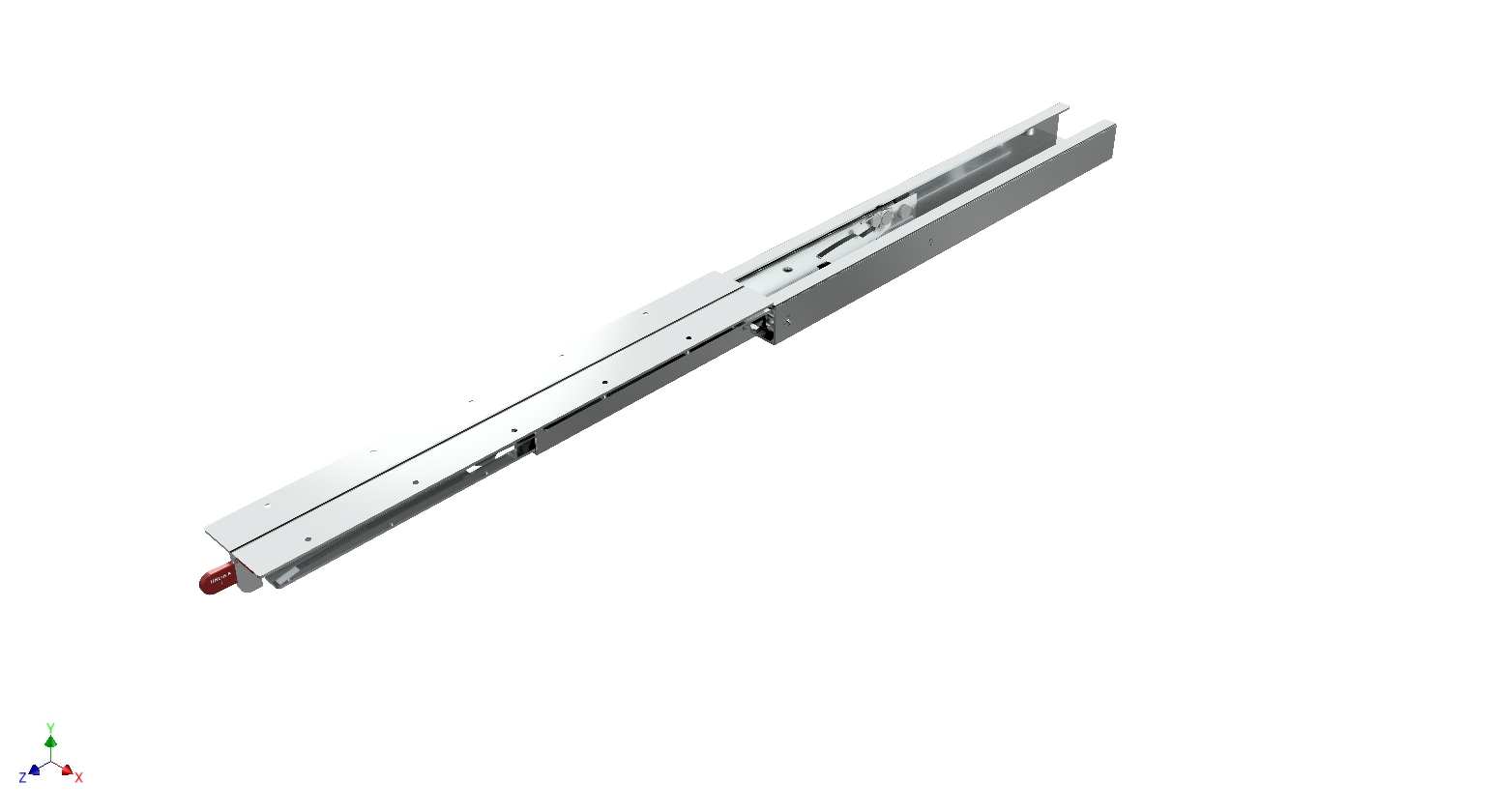

  • Standard finish is clear zinc commercial plating, E-Coat conversion coating or powder coating available.
  • Load capacity is based on one slide at full extension, with load (center of gravity) at midpoint of the slide (chassis section). For increased load requirements, multiply the number of slides required for the application.
  • Stated load capacity has a 100% static (non-moving) load safety factor at full extension. Slide is not intended to be operated with continuous loading which exceeds stated capacities.
  • Ball bearing rollers are lubricated with -45°F to 350°F temperature range grease.
  • Measured in the closed (retracted) position.
  • Slide members are made from 12 gage (0.105) cold rolled steel.
  • Other non-standard options including finishes and stainless steel slides are available. These options require a special reference number.
  • No mounting hardware supplied.
  • Slide designed for compression loading only.

Product Models

Showing Results: 1 - 25 of 38
Results Per Page:
Item # Slide Length - A (in) Forward Extension - B (in) Load Capacity (lbs) GDI Reference #
C-938-14 14 14.06 335 CC5200-00-0140
C-938-16 16 16.06 285 CC5200-00-0160
C-938-18 18 18.06 250 CC5200-00-0180
C-938-20 20 20.06 220 CC5200-00-0200
C-938-22 22 22.06 200 CC5200-00-0220
C-938-24 24 24.06 180 CC5200-00-0240
C-938-26 26 26.06 165 CC5200-00-0260
C-938-28 28 28.06 155 CC5200-00-0280
C-938-30 30 30.06 140 CC5200-00-0300
C-938-32 32 32.06 130 CC5200-00-0320
C-938-34 34 34.06 125 CC5200-00-0340
C-938-36 36 36.06 120 CC5200-00-0360
C-938-38 38 38.06 110 CC5200-00-0380
C-938-40 40 40.06 105 CC5200-00-0400
C-938-42 42 42.06 100 CC5200-00-0420
C-938-44 44 44.06 95 CC5200-00-0440
C-938-46 46 46.06 90 CC5200-00-0460
C-938-48 48 48.06 85 CC5200-00-0480
C-938-12-LI/LO 12 12.06 400 CC5201-00-0120
C-938-14-LI/LO 14 14.06 335 CC5201-00-0140
C-938-16-LI/LO 16 16.06 285 CC5201-00-0160
C-938-18-LI/LO 18 18.06 250 CC5201-00-0180
C-938-20-LI/LO 20 20.06 220 CC5201-00-0200
C-938-22-LI/LO 22 22.06 200 CC5201-00-0220
C-938-24-LI/LO 24 24.06 180 CC5201-00-0240
