C-300-D Pivot Up and Down Slide (3 Position Lock)

Product Notes

• Designed to allow mounted load 180 degrees of tilt with 3 locking positions once extended out from rack.
• Separate design options to mount slide in center of 1 U (-RC) or split between 2 U's ( standard)  based on desired positioning of chassis within rack.
• Popular uses included:

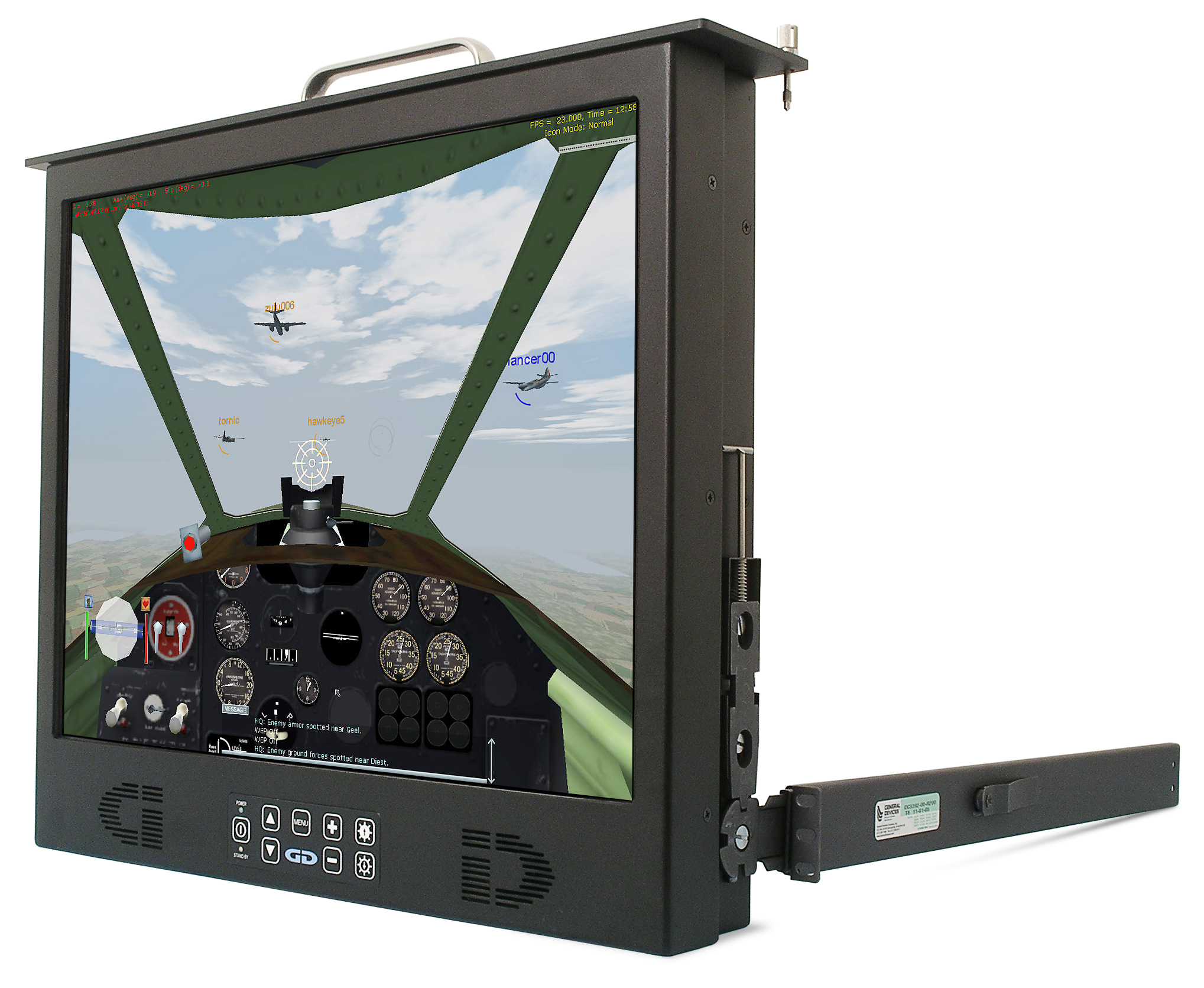

  • Tilting down a screen or keyboard for use then locking it horizonal to retract it back into rack
  • tilting down a chassis unit for easier rear or top access.
• Standard finish is Poxylube® dry film lubricant and is RoHS and REACH compliant. Additional finishes such as plating are available underneath the Poxylube to increase corrosion resistance.
• Right hand slide shown, left hand opposite. Sold as a pair.
• All standard slides are designed to lock out in the extended position, however, automatic release is available when lockout is not desirable.
• Standard hardware packages include all hardware necessary:
  • Rear mounting brackets ( specify B-217 or B-161) based on U positioning style
  • corresponding bar nuts based on U positioning style
  • #10-32 x 0.50 Flush Mount or  Button head screws
  • #10-32 KEPS® nuts
• All Chassis Trak® solid bearing slides are supplied with a quick disconnect feature. This permits the entire chassis to be removed easily and replaced.
• All Chassis Trak® solid bearing frictions slides are extremely shock and vibration resistant making them perfect for rugged applications.
• Optional mounting patterns, slide lengths and extensions are available.
